TENSE 12V DC MOTIVITY PLUS CEILING MOTION DETECTOR

MOTIVITY PLUS

POWER SUPPLY: 12 V DC
MAX POWER CONSUMPTION: [6 mA/12VDC (idle)] 25 mA/12 VDC (active)
CONNECTION: normally open potential free contact
OPERATING TEMPERATURES: -5°C to +45°C
MAX HUMIDITY: 93% relative humidity, no moisture condensation
SUPPORTED SYSTEMS: NOC
COLOUR: white, black

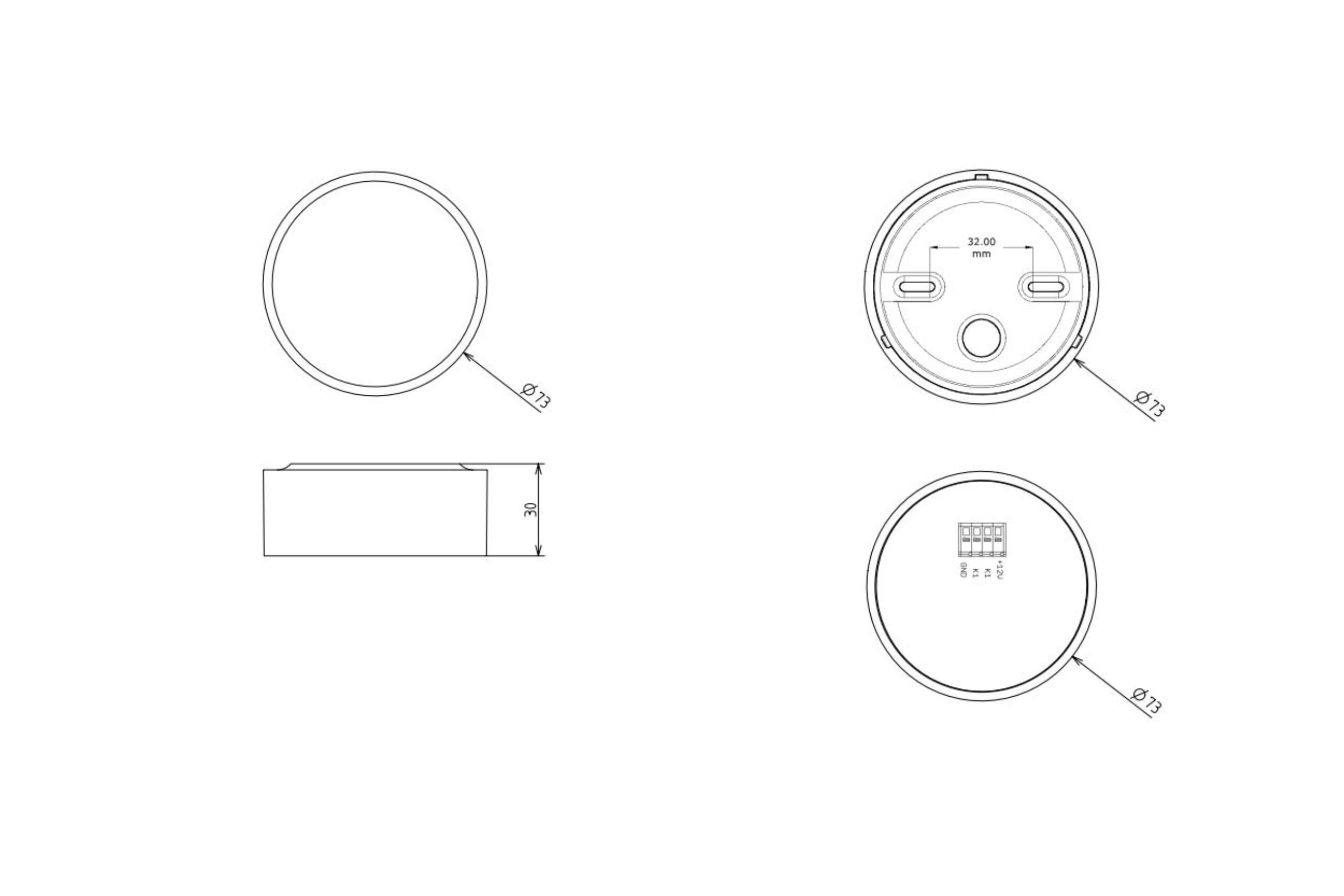

DIMENSIONS (w x h): 30 x Ø 73 mm
TYPE OF PROTECTION (EN 60529): IP20 (installed in ceiling), IP52 (weatherproof)

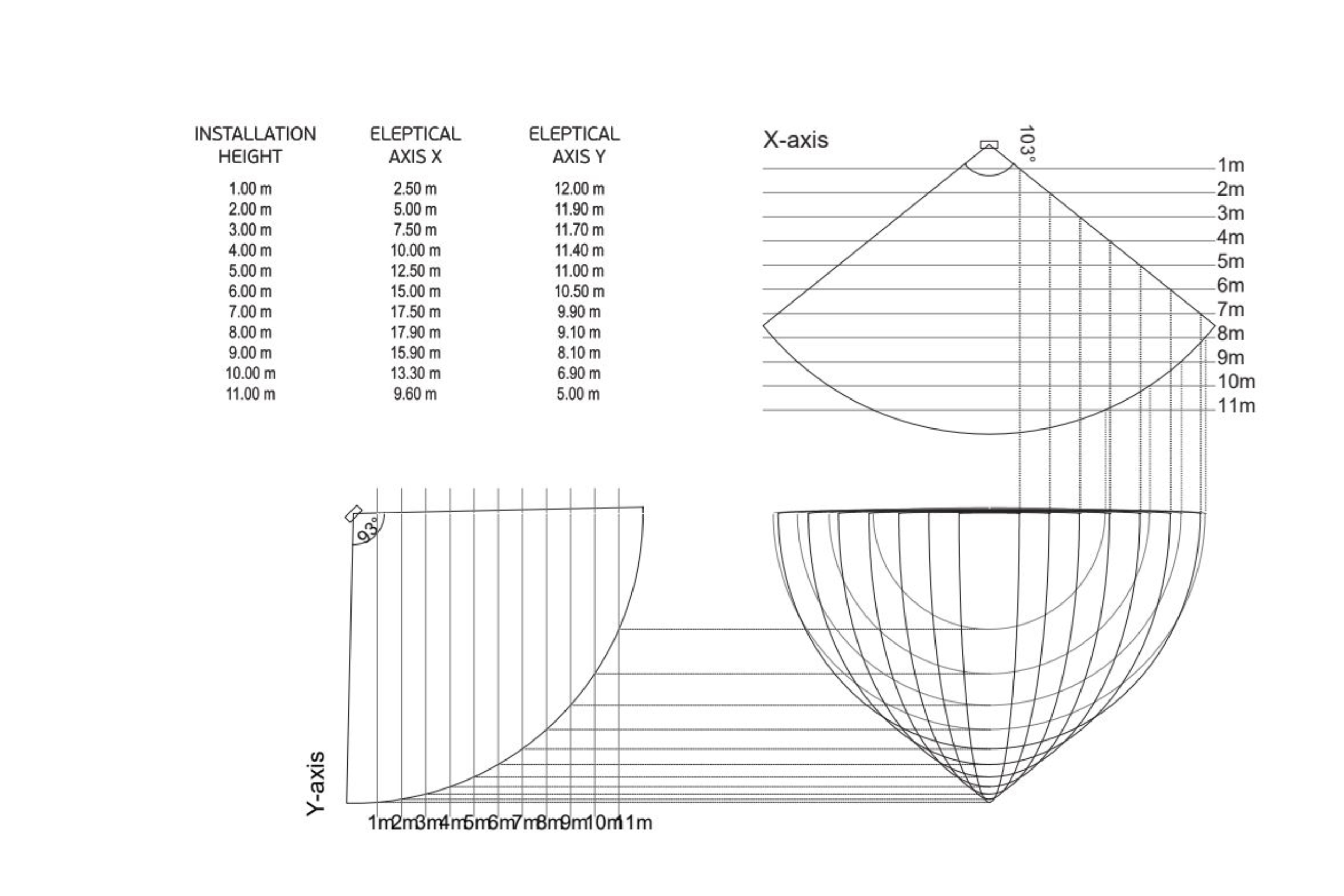

PROJECTION ZONE
The projection zone of the Motivity Plus has an elliptical shape and detects up until a distance of 12 m.

MOTIVITY PLUS ANGLE

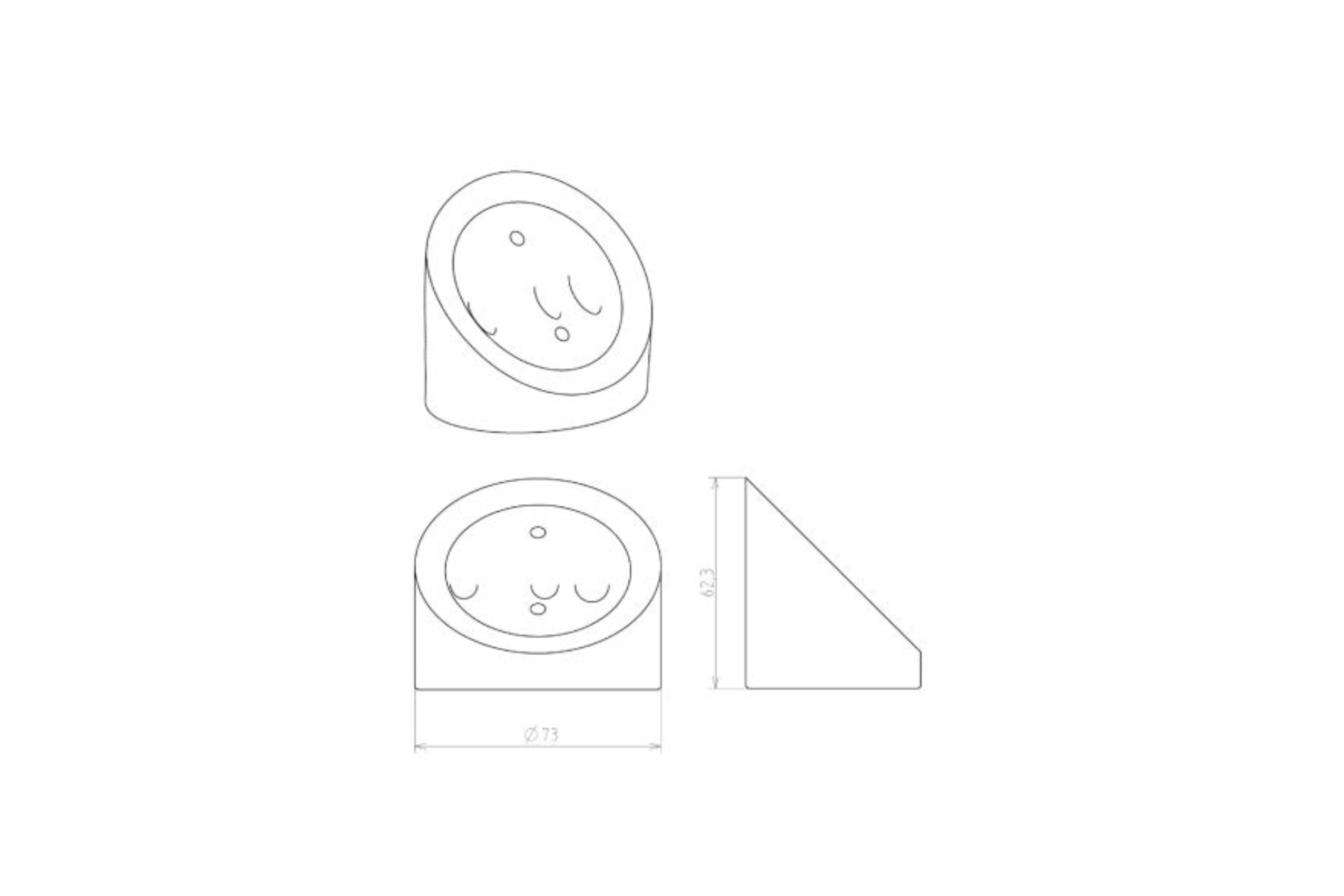

The Motplus Angle by Tense is a special bracket made for the Motivity Plus sensor.

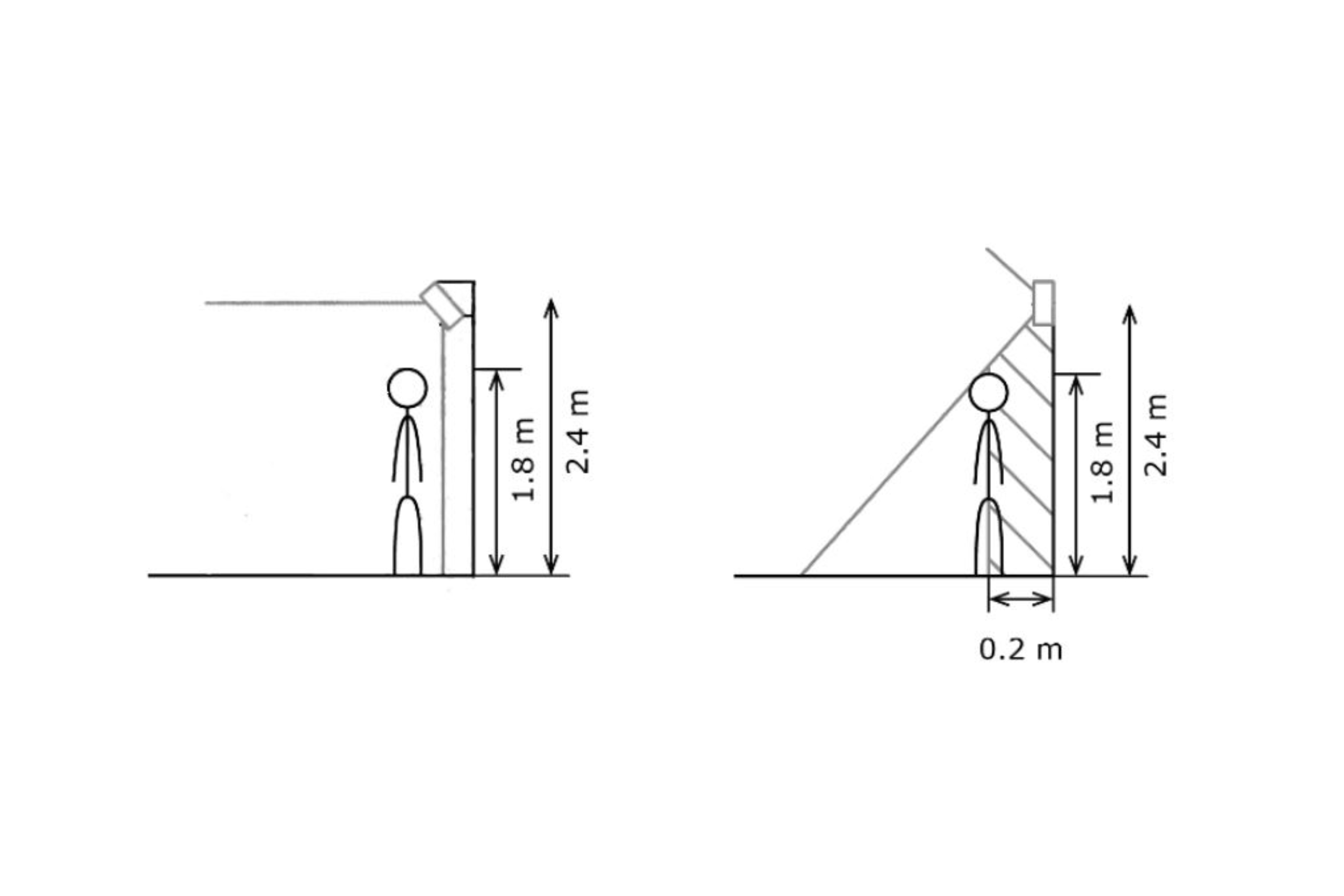

The minimalistic design of the Motplus Angle is little intrusive in the interior or the exterior. This Motivity Plus accessory tilts the detector 45° downwards. This causes the detection zone to be narrowed and eliminates the blind spot.
PRODUCTION METHOD: 3D printing
COLOUR: white, black
DIMENSIONS: 62,3 x Ø73 mm
TYPE OF PROTECTION (EN 60529): IP20
MATERIAL: PLA (polylactide)

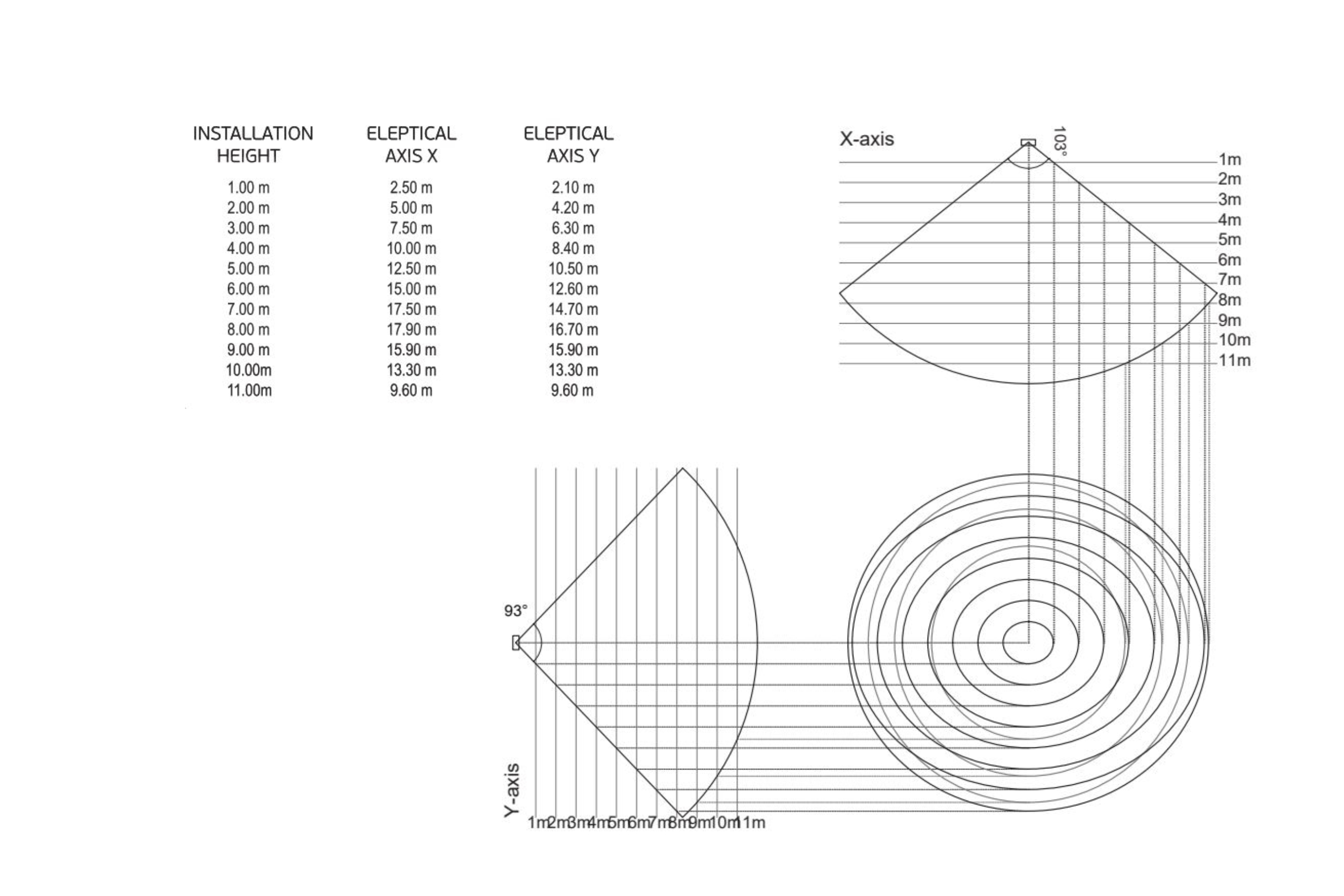

PROJECTION ZONE
The Motivity Plus in combination with the Motivity Angle detects up untill a distance of 12m.

TRIMLESS WALLBOX

The sensor is surface mount, but can be made 100% recessed with the Trimless Wallbox delivered by Xillo®. The fixture is in one piece and completely made of the solid patented composite, so no need for an extra mounting kit. Easily install this wallbox in the ceiling or wall thanks to the pre-drilled holes. The unique layered design and the handy indicators for laser positioning, make sure that every fixture is easy to plaster. In addition, the typical Xillo pattern and large mounting surface ensure that the plaster is always perfectly fixated.
