TENSE INTENSITY INTEGRATED



Tense can now provide you with the electronics and special wallbox made out of the patented Xillo® material to be placed behind a glass, Corian®, stone, ceramic or wooden wall. This way, a foolproof installation of any integrated switch is possible: with gap, no gap, or invisible.





SPECIFICATIONS

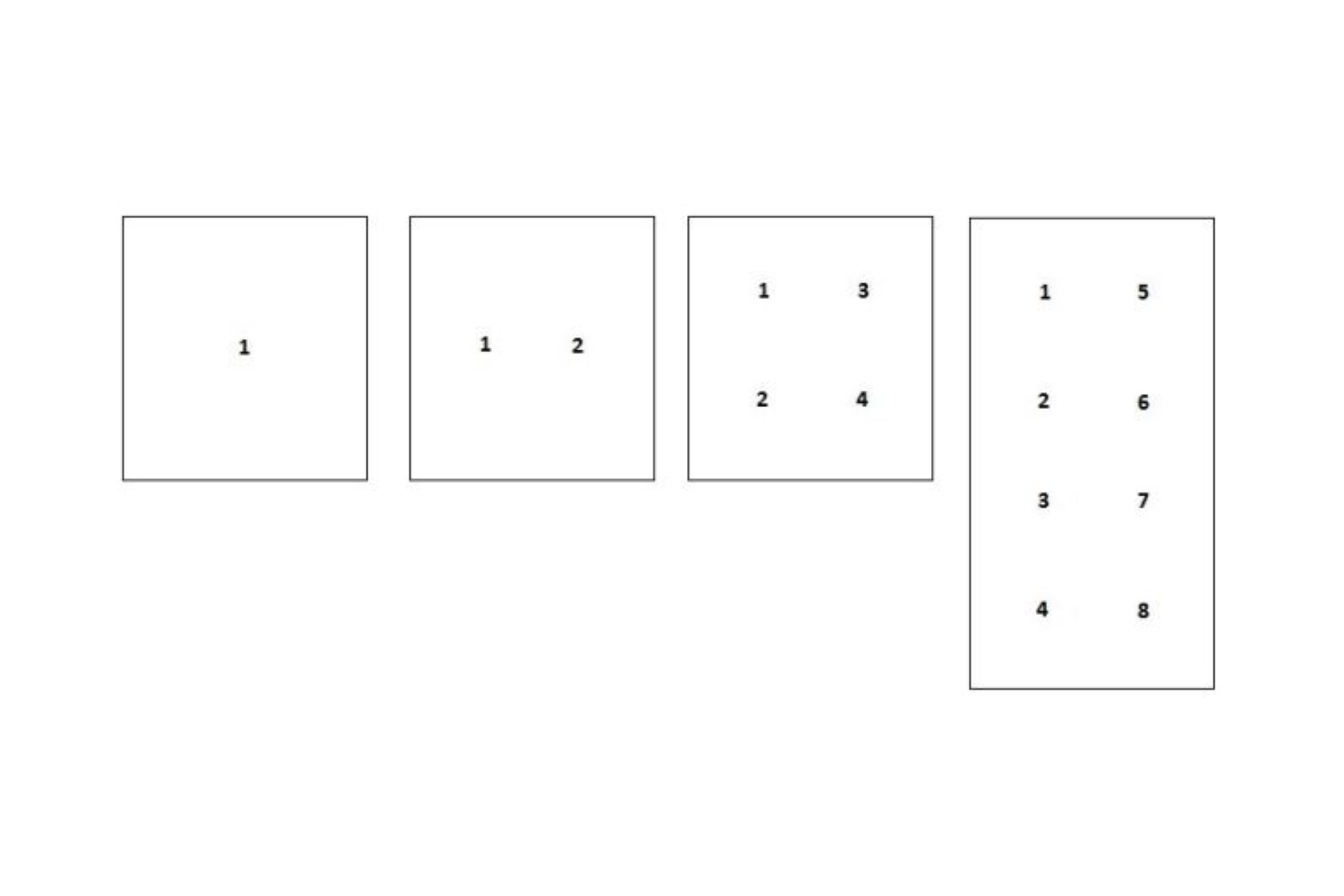

Depending on the type of product the Intensity Integrated has 1, 2 or 4 touch zones with individual white LED feedback per touch zone. The LED feedback is adjustable in 2 settings: The first one is 70% brightness when untouched, when touched the white LED will light up to 100% brightness. The second option is no LED brightness is shown, but when touched the white LED will light up to 100%. The processing of the generated touch signals depends on the connected third party input module. Multi touch output is supported without separate channel.

TRIMLESS WALLBOX
The Intensity Integrated electronics are installed with the Trimless Switch Wallbox delivered by Xillo®. Made of the solid patented Xillo composite, the Integrated Wallbox meets the highest finishing standards and is suitable for all surfaces. The wallbox can be placed behind any panel of a thickness from 18mm up to 22mm.

Material: patented composite
Type of protection (EN 60529): IP20 (with front plate mounted)
Compatibility: KNX_INTINT4, NOC_INTINT4
Operating temperatures: +10°C to +45°C

The Trimless Wallbox by Xillo® has to be ordered separately.

MATERIALS the Intensity Integrated is suitable for:
Glass
Corian®
Stone
Ceramic
Wood
MDF
Terrazzo.

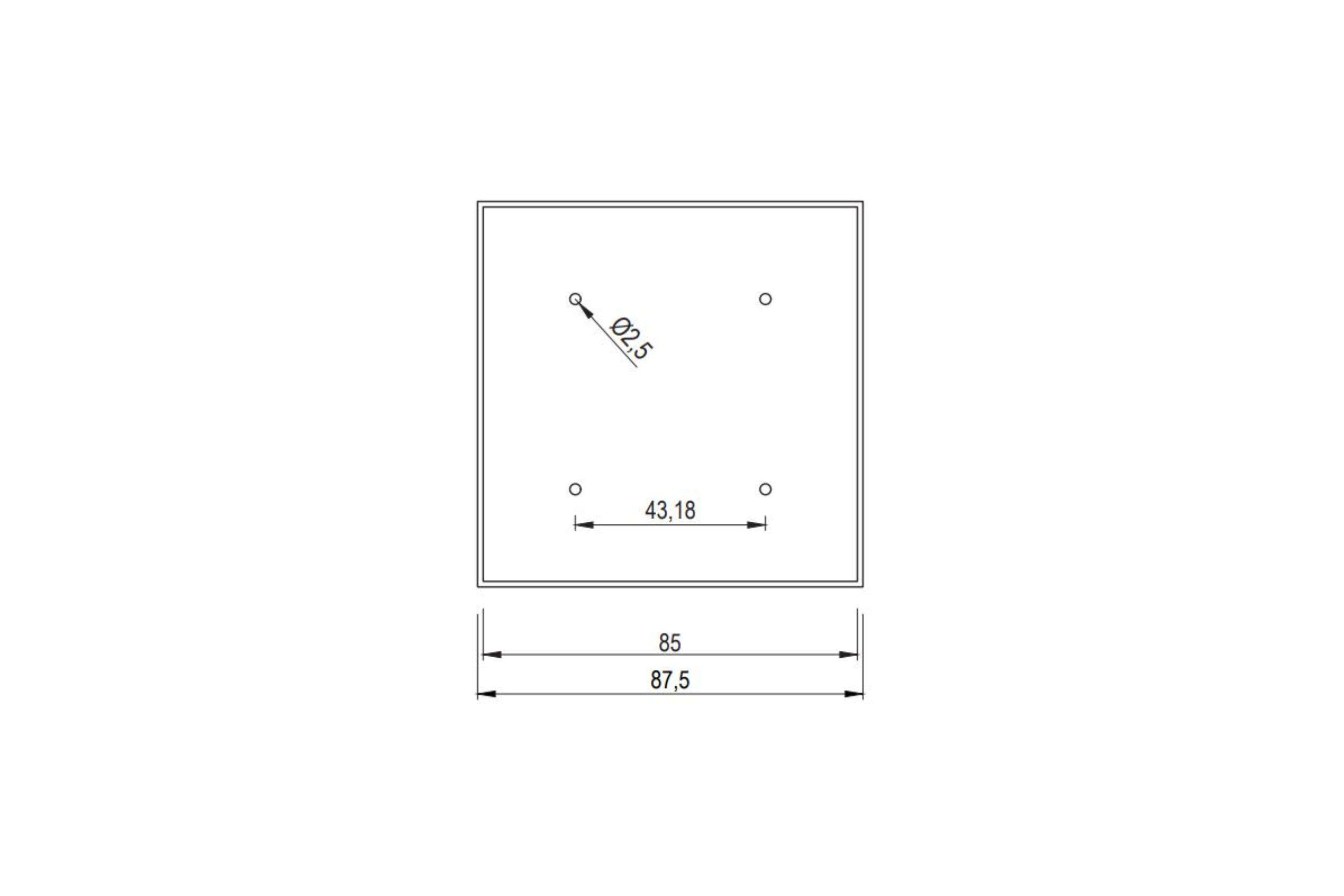

INTENSITY INTEGRATED WITH GAP (WG)

The Intensity Integrated wallbox With Gap (WG) combined with the Tense Intensity Integrated Electronics results in a 100% integrated capacitive touch based switch. The switch has 1, 2 or 4 touch zones with individual RGB LED feedback coming from the small LED hole(s) in the wall’s finish. The switch is clearly distinguishable from the wall due to the 1mm gap around its 85 x 85 mm front plate. Since the cut-out from your wall finish is used in the switch assembly, the switch can be made fully integrated in the wall finish of your choice while still maintaining the characteristic looks of a Tense switch.
Dimensions visible: 87,5 x 85 mm
Dimensions wallbox: 125 x 125 x 14 mm (wallbox and electronics)

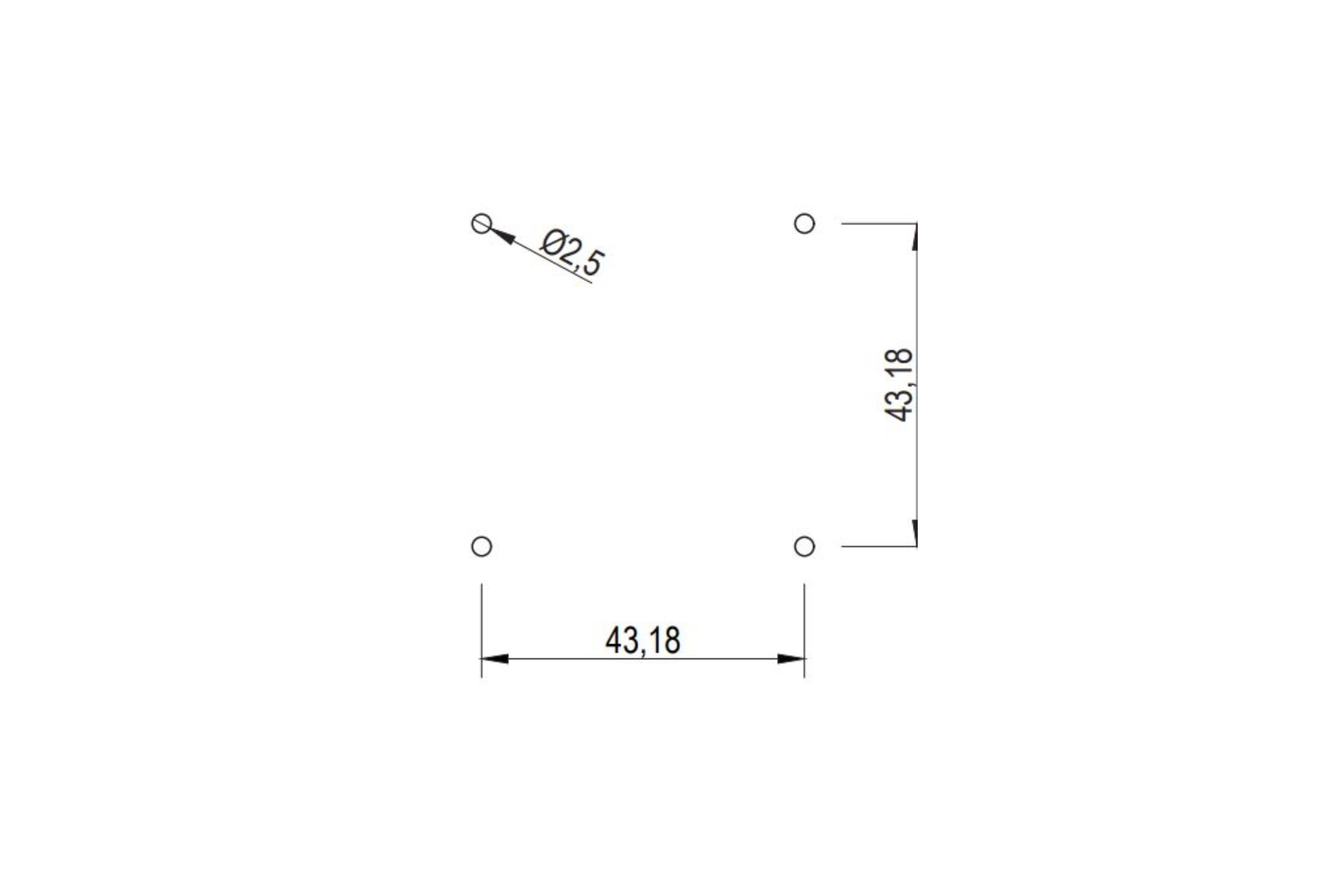

INTENSITY INTEGRATED NO GAP (NG)

The Intensity Integrated wallbox No Gap (NG) combined with the Tense Intensity Integrated Electronics results in a 100% integrated capacitive touch-based switch. No gap, no frills. The switch has 1, 2 or 4 touch zones with individual RGB LED feedback coming from the small LED hole(s) in the wall’s finish.
Dimensions visible: 45 x 45 mm
Dimensions wallbox: 125 x 125 x 22.9 mm (wallbox and electronics)

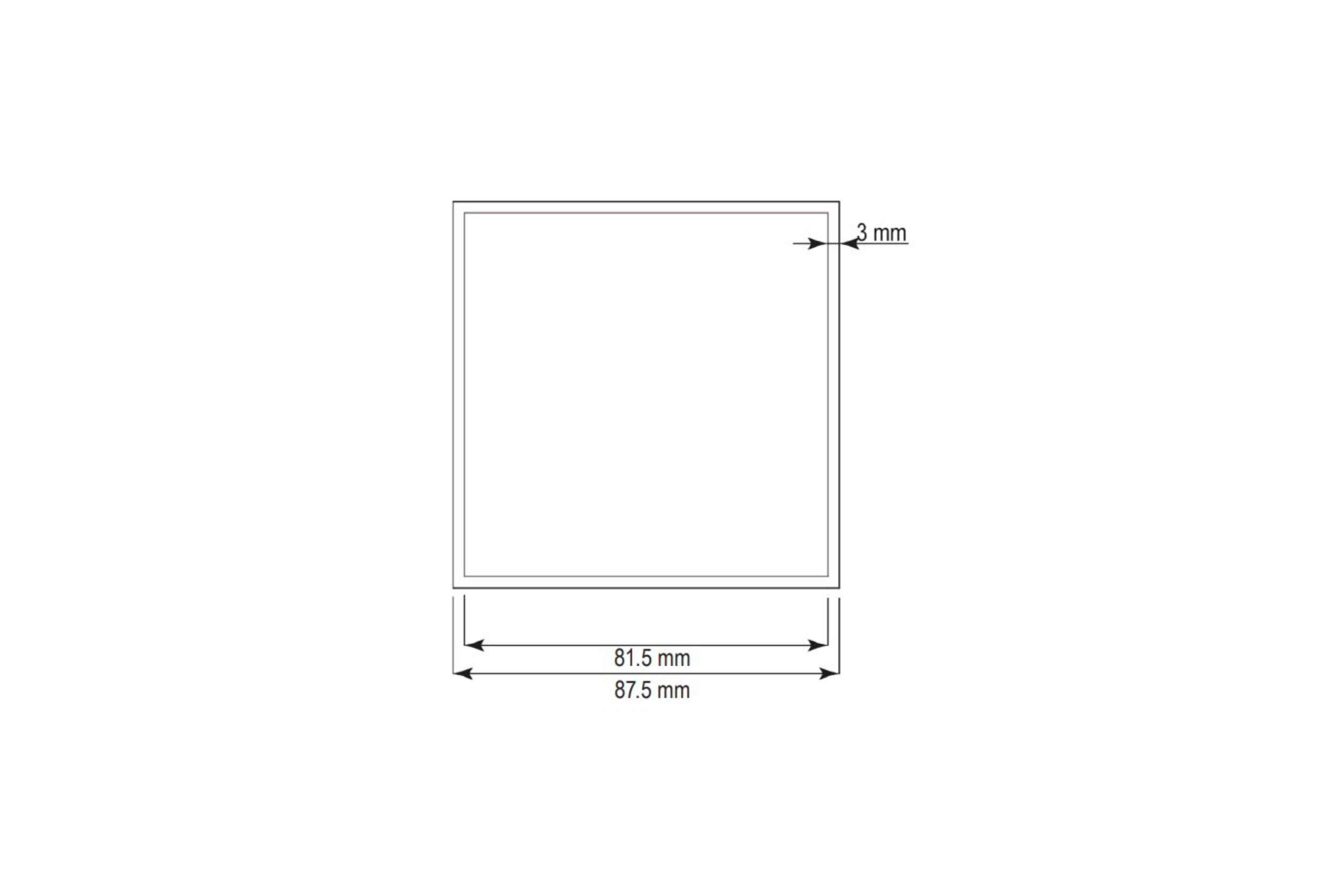

INTENSITY INTEGRATED INVISIBLE

The Intensity Integrated Invisible wallbox combined with the Tense Intensity Invisible Integrated Electronics results in a 100% Integrated capacitive touch-based switch of 79 x 79mm. The switch has 4 touch zones with individual RGB LED feedback coming from the corners through the 3 mm gap around the switch’s finish. Since the cut-out from the wall finish is used in the switch’s assembly, they can be made fully integrated in the wall finish.
Dimensions visible: 79 x 79 mm
Dimensions wallbox: 125 x 125 x 11 mm
