Tense can provide you with the surface mount, integrated, invisible, or paintable sockets that all demonstrate Tense’s architectural approach on Socket Frames – be it standard or non-standard, with the minimalistic look and slim design they are a true design solution.
INVISIBLE SOCKET WALLBOX by Xillo®
The non-standard (integrated, invisible, paintable) socket frames are mounted in composition with the electronics and a special trimless invisible wallbox to be placed behind paintable and non-paintable wall. The Invisible Socket Wallbox by Xillo® is a special wallbox made with the patented Xillo® material. It allows you to have a perfect 100% recessed solution for your Tense Invisible Socket for both Plasterboard (12,5mm thickness wallbox) and Brick or Concrete (6 mm thickness wallbox) wall structures.
ALUMINIUM FINISHES
Alu (brushed), Forged Alu, Alu Black (brushed), Forged Alu Black, Alu Dark Grey (brushed), Forged Alu Dark Grey, Alu White (RAL 9016), Alu RAL (on request)
BRONZE FINISHES
Bronze, Forged Bronze, Bronze Light, Forged Bronze Light
OTHER METAL FINISHES
Chrome (polished), Stainless Steel (brushed), Forged Stainless Steel, Forged Steel, Brushed Gold, Forged Gold, Brushed Copper Rose, Forged Copper Rose
A) STANDARD PLATE 6 MM SQUARE SOCKET
TYPE OF PROTECTION (EN 60529): IP20
INSERT: 45×45 mm. Has to be ordered separately.
COMPATIBILITY: Legrand Arteor/ Mosaic & Valena Next/ PEHA: Concept 45
STANDARD: German/single British
MATERIAL: all metal finishes
DIMENSIONS:

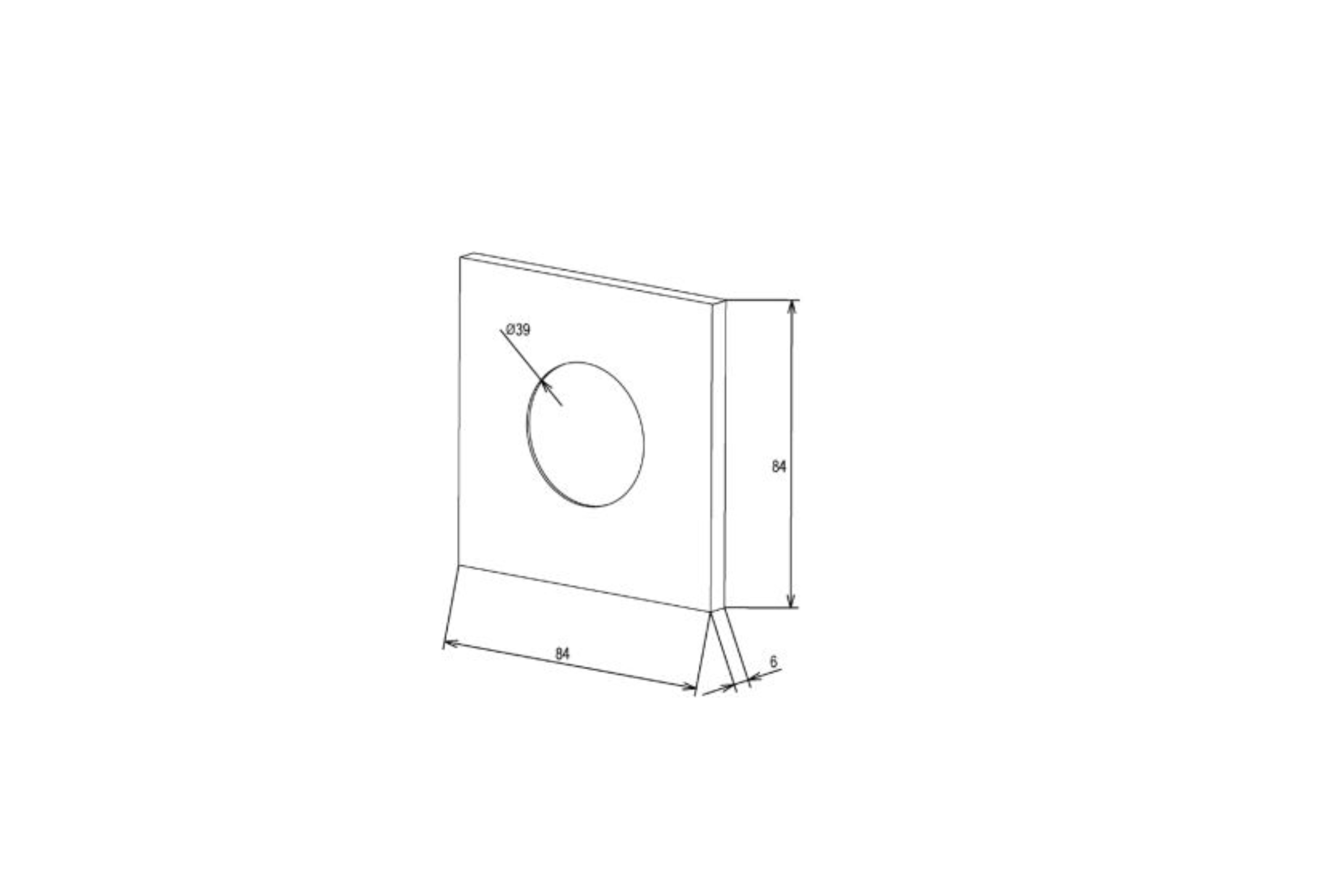

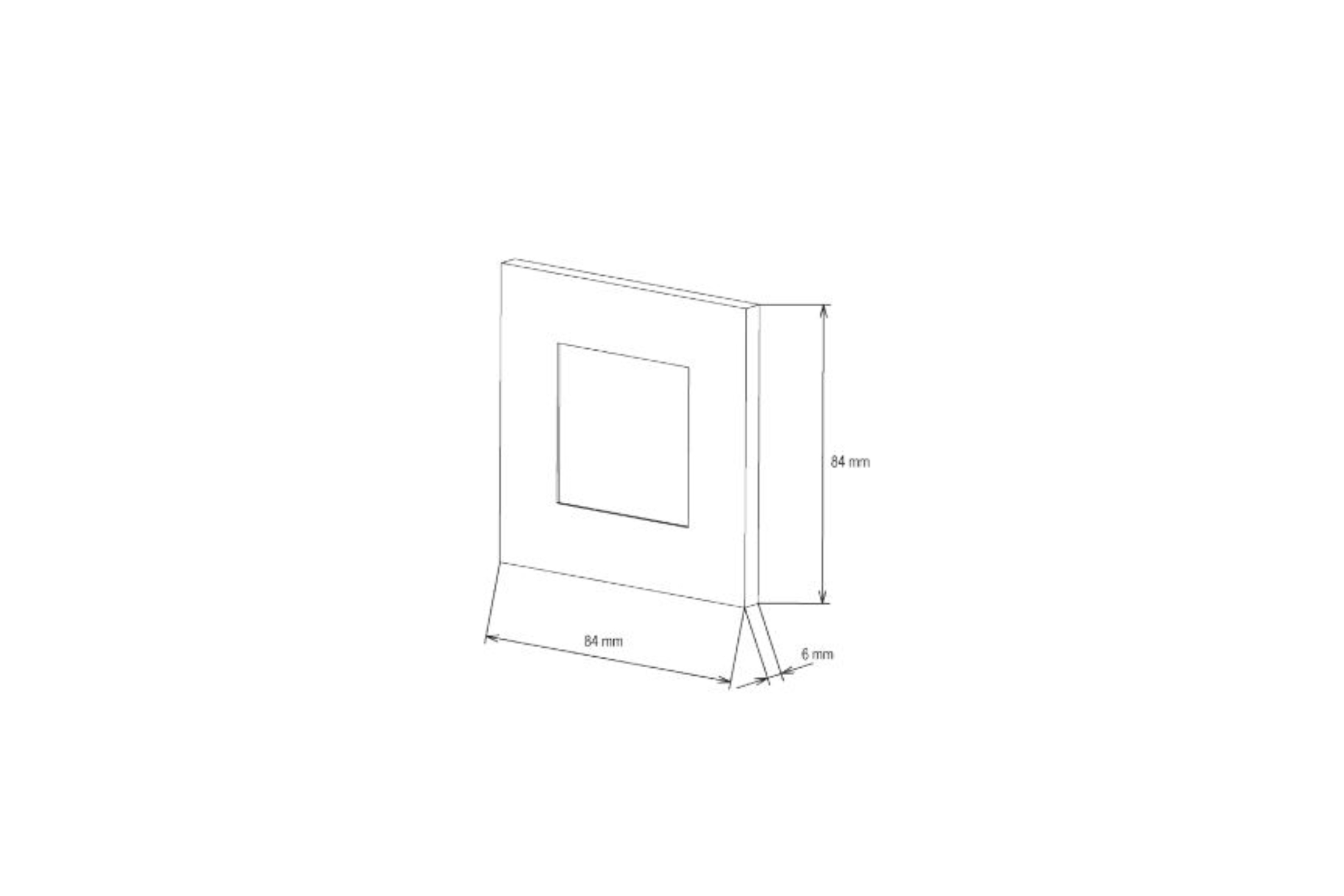

1F 84 x 84 x 6 mm
2F 155 x 84 x 6 mm
3F 226 x 84 x 6 mm
4F 297 x 84 x 6 mm
5F 368 x 84 x 6 mm
B) STANDARD PLATE 6 MM ROUND SOCKET
TYPE OF PROTECTION (EN 60529): IP20
INSERT: 45×45 mm. Has to be ordered separately.
COMPATIBILITY: Legrand Arteor/ Mosaic & Valena Next/ PEHA: Concept 45
STANDARD: German only.
MATERIAL: all metal finishes
DIMENSIONS:
1F 84 x 84 x 6 mm
2F 155 x 84 x 6 mm
3F 226 x 84 x 6 mm
4F 297 x 84 x 6 mm
5F 368 x 84 x 6 mm
C) STANDARD PLATE SOCKET INTEGRATED
The surface mount Standard Plate 6 mm Square and Standard Plate 6 mm Round can be made 100 % recessed with the Trimless Wallbox delivered by Xillo®.
MATERIAL: all metal finishes
DIMENSIONS: 1F, 2F, 3F, 4F & 5F
D) INVISIBLE SOCKET
With only the plug hole visible this is the most minimalistic socket outlet. The Invisible Socket Wallbox by Xillo® allows to have a perfect 100% recessed solution.
TYPE OF PROTECTION (EN 60529): IP20
OPERATING TEMPERATURES: +10°C to +45°C
INSTALLATION DEPTH: 12,8 mm + depth wall box
COMPATIBILITY: Berker S.1/B.3/B.7/ HAGER WYS400 / WYS200/ Legrand SL CREO/ Merten System M/ JUNG A1520WW/ Gira 55/ Schneider Electric
MATERIAL: Patented Composite; Paintable
AVAILABLE VERSIONS: 1F, 2F
The standard European round backbox Ø68 is included.

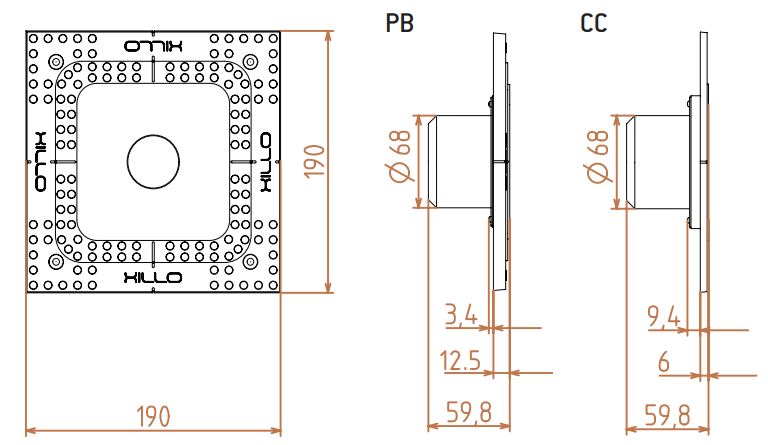

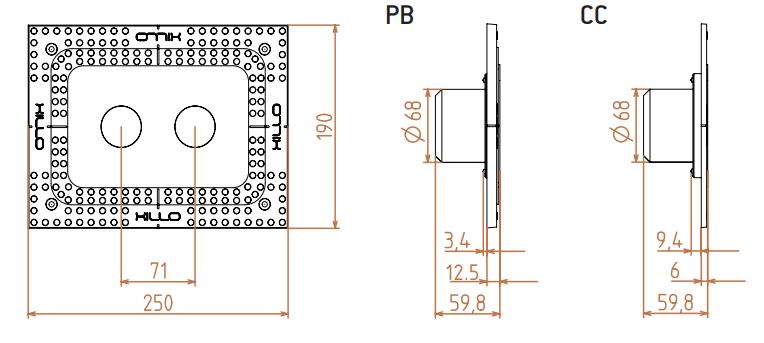

The Trimless wallbox by Xillo® has to be ordered separately.
E) INTEGRATED SOCKET WITH GAP
The Integrated Socket Wallbox With Gap can be made fully integrated in the wall finish of your choice while still maintaining the characteristic looks of a Tense socket. The innovative Socket Wallbox by Xillo® can be placed behind a GLASS, CORIAN®, STONE, CERAMIC, TERRAZZO, MDF, or WOODEN WALL. The material’s cut-out is used in the assembly of the switch to guarantee the pattern running continuously over the switch.
TYPE OF PROTECTION (EN 60529): IP20
COMPATIBILITY: Peha Concept 45/ Legrand: Mosaic, Arteor, Valena
OPERATING TEMPERATURES: +10°C to +45°C

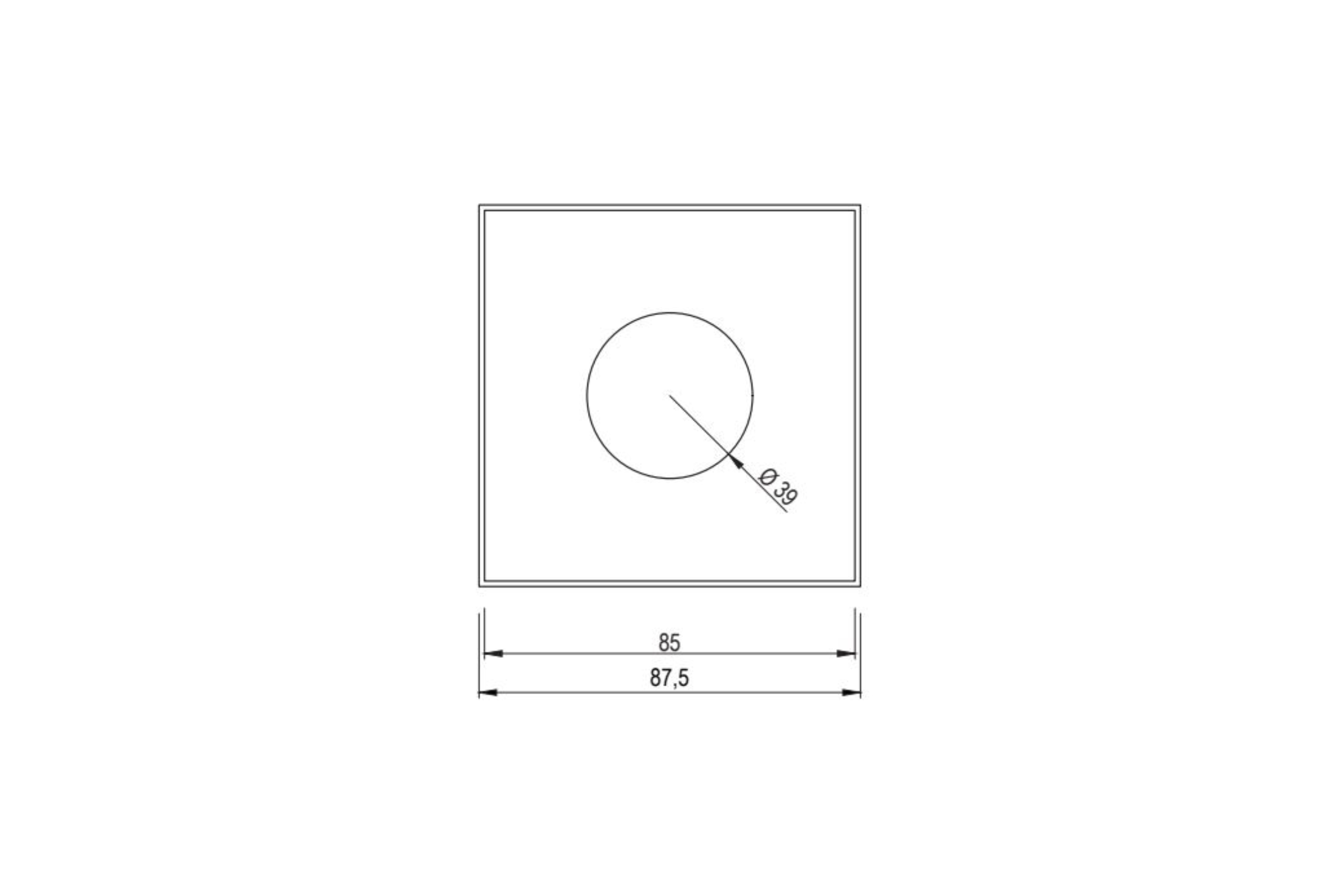

DIMENSIONS 1F: 85 x 85 mm
DIMENSIONS WALLBOX: 125 x 125 x 12 mm
AVAILABLE VERSIONS: 1F, 2F
The Trimless wallbox by Xillo® has to be ordered separately.
F) INTEGRATED SOCKET NO GAP
The Integrated Socket Wallbox No Gap can be made fully integrated in the wall finish of your choice for the most minimalistic look. No gap, no frills, only the socket opening. The innovative Socket Wallbox by Xillo® can be placed behind a GLASS, CORIAN®, STONE, CERAMIC, TERRAZZO, MDF, or WOODEN WALL.
TYPE OF PROTECTION (EN 60529): IP20
COMPATIBILITY: Peha Concept 45/ Legrand: Mosaic, Arteor, Valena Next
OPERATING TEMPERATURES: +10°C to +45°C

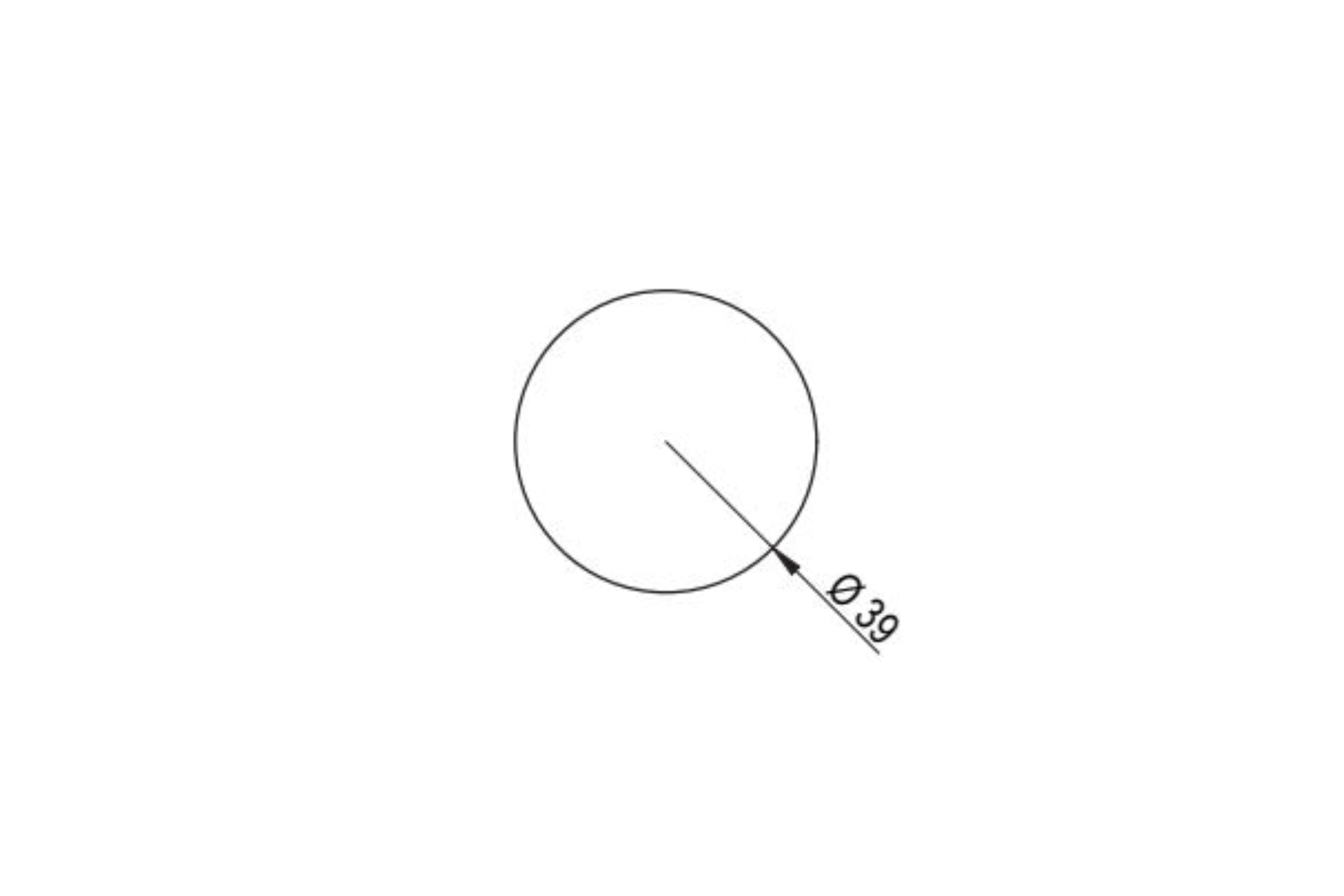

DIMENSIONS 1F: Ø 39 mm
DIMENSIONS WALLBOX: 125 x 125 x 21 mm
The Trimless wallbox by Xillo® has to be ordered separately.
G) PAINTABLE SOCKET
With a thickness of only 6mm, the Socket Frame Paintable has the same thickness as the Tense Intensity Paintable switch.
The Socket Frame Paintable can be installed on a regular single British or European square or round wallbox. The Socket 6MM is best mounted on the round Kaiser boxes. If installed on a different

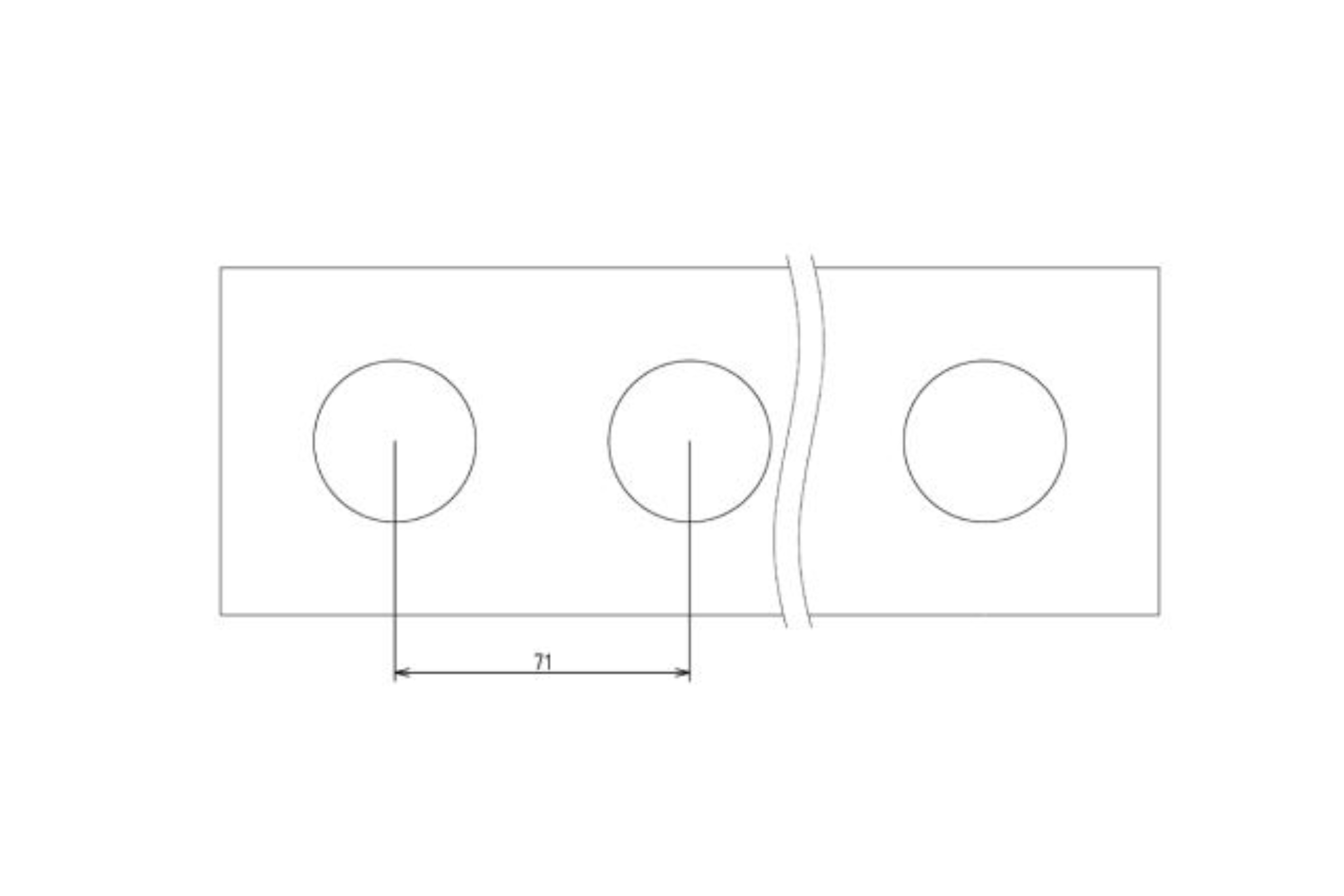

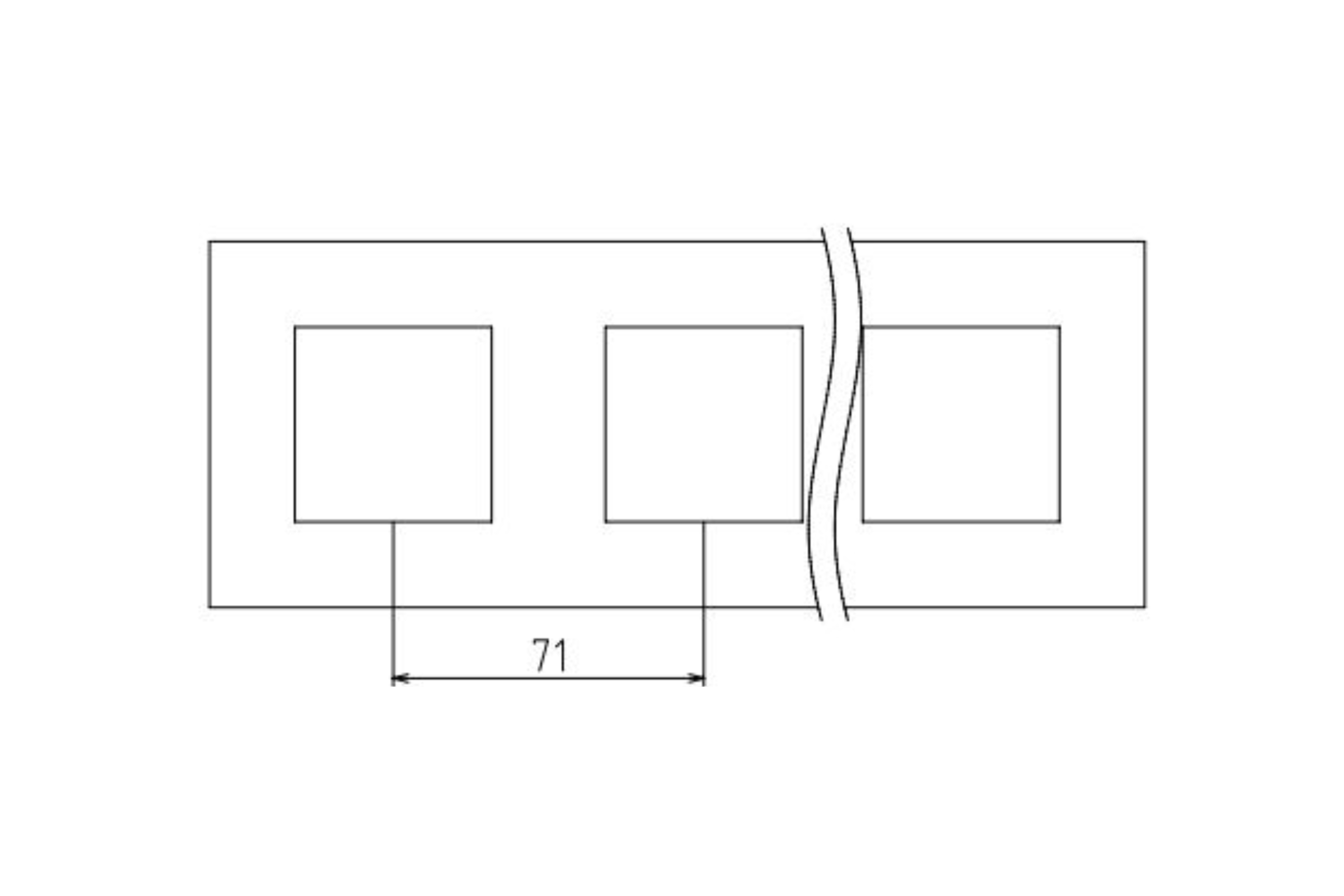

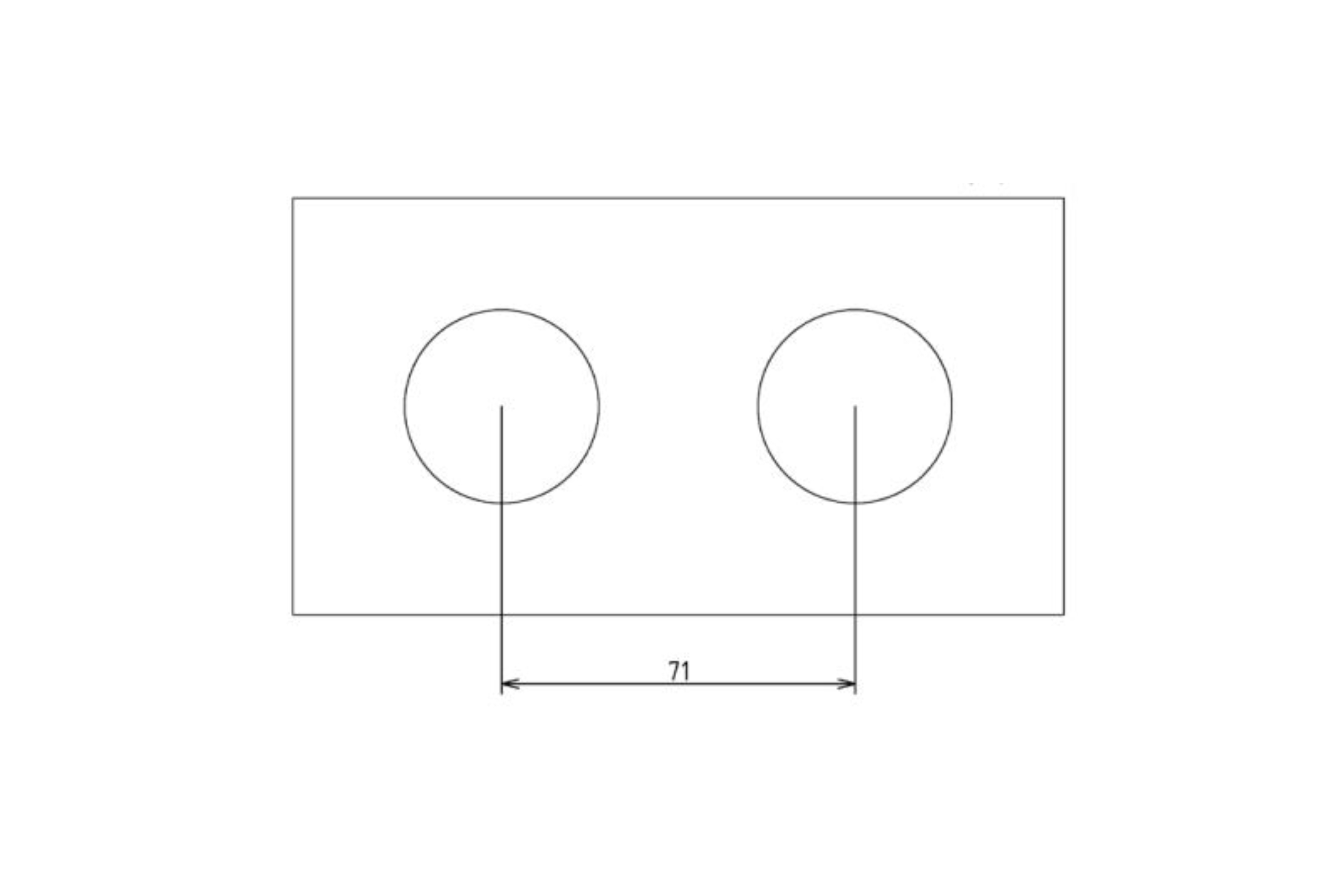

brand wallbox, adaptations to the black plastic bracket needs to be done. Shave the elevated rounded corners of the black bracket until it fits in the wallbox. When installing multiple fold socket frames only single British wallboxes can be used or any other wallbox with a centre-to-centre distance of 71mm. The most minimalistic end result is created when the socket is installed 100 % recessed with the Trimless Wallbox delivered by Xillo®.
TYPE OF PROTECTION (EN 60529): IP20
COMPATIBILITY: Peha Concept 45/ Legrand: Mosaic, Arteor, Valena Next
STANDARD: German / single British
OPERATING TEMPERATURES: +10°C to +45°C
DIMENSIONS:

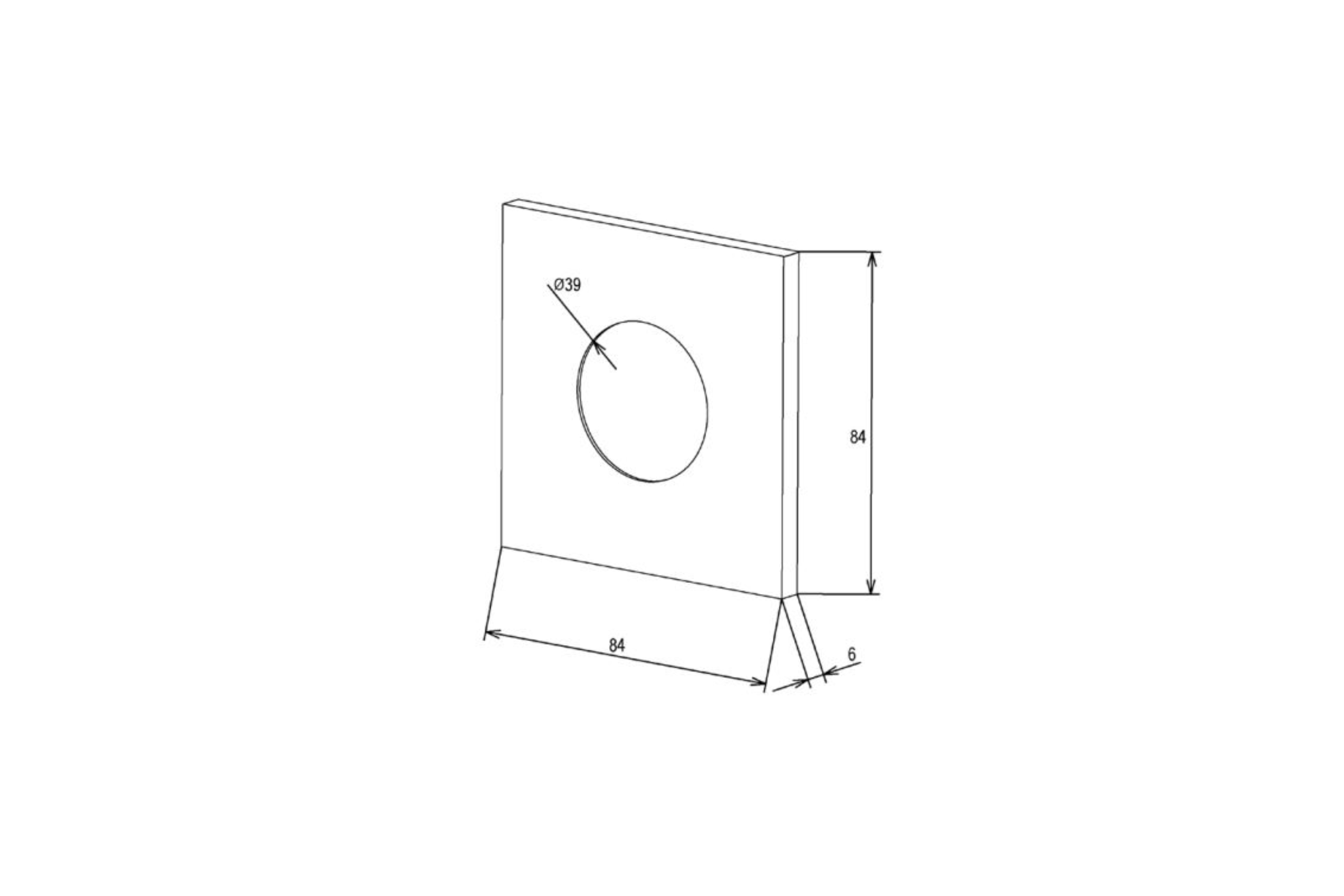

1F 84 x 84 x 6 mm
2F 155 x 84 x 6 mm
3F 226 x 84 x 6 mm
The standard European round backbox Ø68 is included.
The Trimless wallbox by Xillo® has to be ordered separately.
