GIRA EVENT

Colour diversity and a uniquely-round frame design are the striking characteristics of the Gira Event switch range. You can give your creativity free reign – and make daily switching an experience.



INSTALLATION
Gira Event is available in the full System 55 range with more than 300 components for modern building management, whether for data and communication technology or bus technology.

PROTECTION TYPE
Gira Event is a design line for flush-mounted installation in dry rooms in accordance with IP 20.

DESIGN LINES
A total of 11 frame variants are available from three design lines, each with a unique appearance in terms of surface material. They can be individually combined with inserts in pure white, cream white, colour aluminium and anthracite.

GIRA EVENT
Exceptional shape, classic colour scheme.
The Event design line features a classic colour palette, but in the unmistakable, semicircular shape of the design line. The completely solid-coloured frames are available in four variants: pure white glossy, pure white matt, colour aluminium and anthracite.

GIRA OPAQUE
Slightly translucent, matt surface, unusual colour palette.
The Gira Event Opaque frame variants are made of opaque plastic, which is a slightly translucent material. The colours appear brighter or darker at different times depending on the lighting conditions. This effect is further emphasised by the curved form of the frames. Gira Event Opaque is available in the following colours: mint, white and dark brown.

GIRA EVENT CLEAR
Clear visual depth, high-gloss surface, a wide variety of colours.
Gira Event Clear brings out colours with a particular luminosity. This design line is characterised by its clarity and visual depth, and high-gloss surface — an effect created by transparent plastic on top of a coloured background.
This changes the way light falls upon the colours, and they develop a unique intensity. Gira Event Clear is available in white, black, brown and sand.

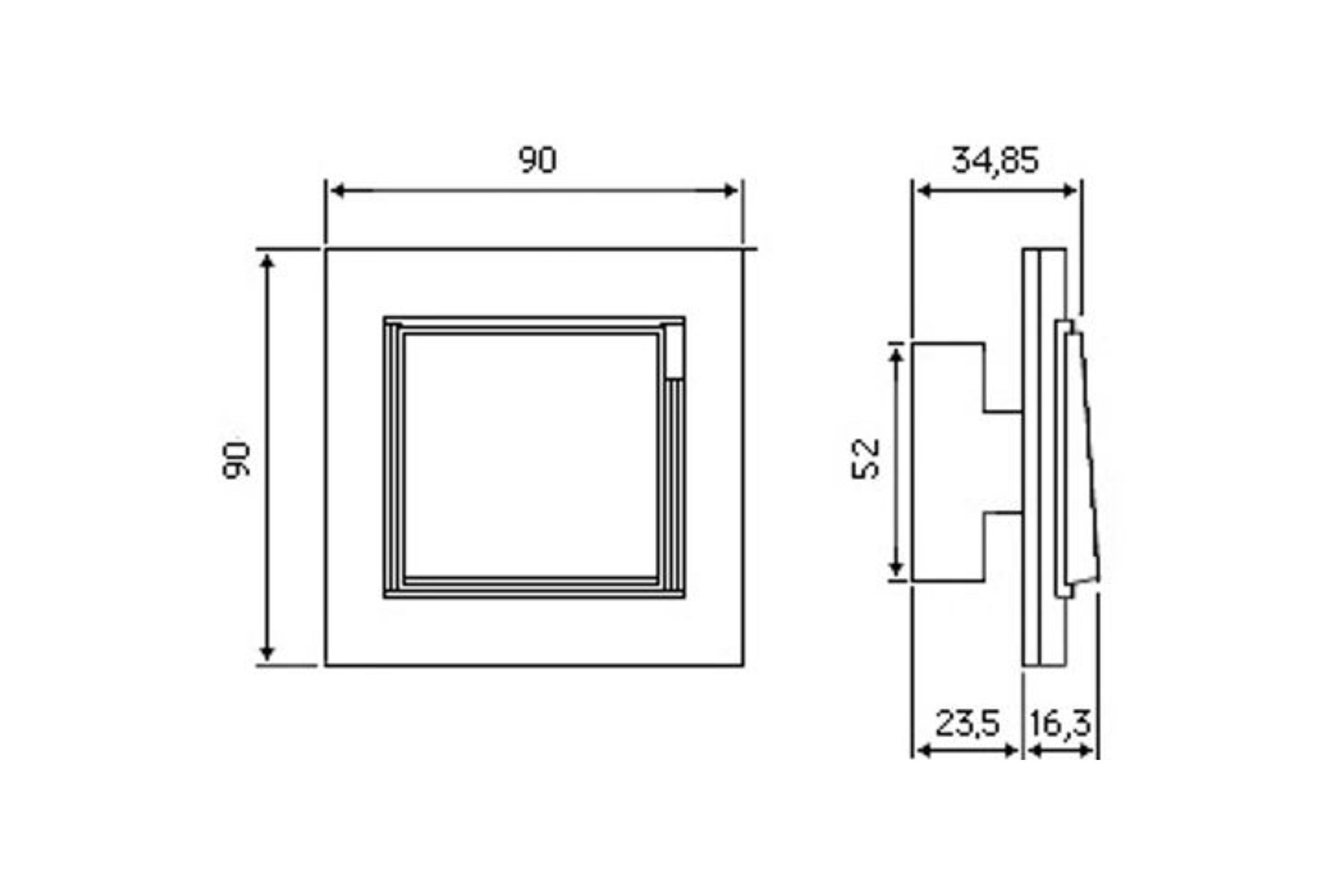

1-gang cover frame: H 90 x W 90 x D 11.35 mm
2-gang cover frame: H 161.1 x W 90 x D 11.35 mm
3-gang cover frame: H 232.6 x W 90 x D 11.35 mm
4-gang cover frame: H 303.9 x W 90 x D 11.35 mm
5-gang cover frame: H 375.2 x W 90 x D 11.35 mm
