The Intensity Landscape switch, specially designed for the Blue Lagoon Hotel***** in Iceland, is a stern switch which beautifully combines functionality and elegant design. These switches consist of 1, 2 or 4 touch zones and is ideal for customizations such as engraving, lasering or printing.
These are all handmade products, hence makes every switch unique.
SPECIFICATIONS

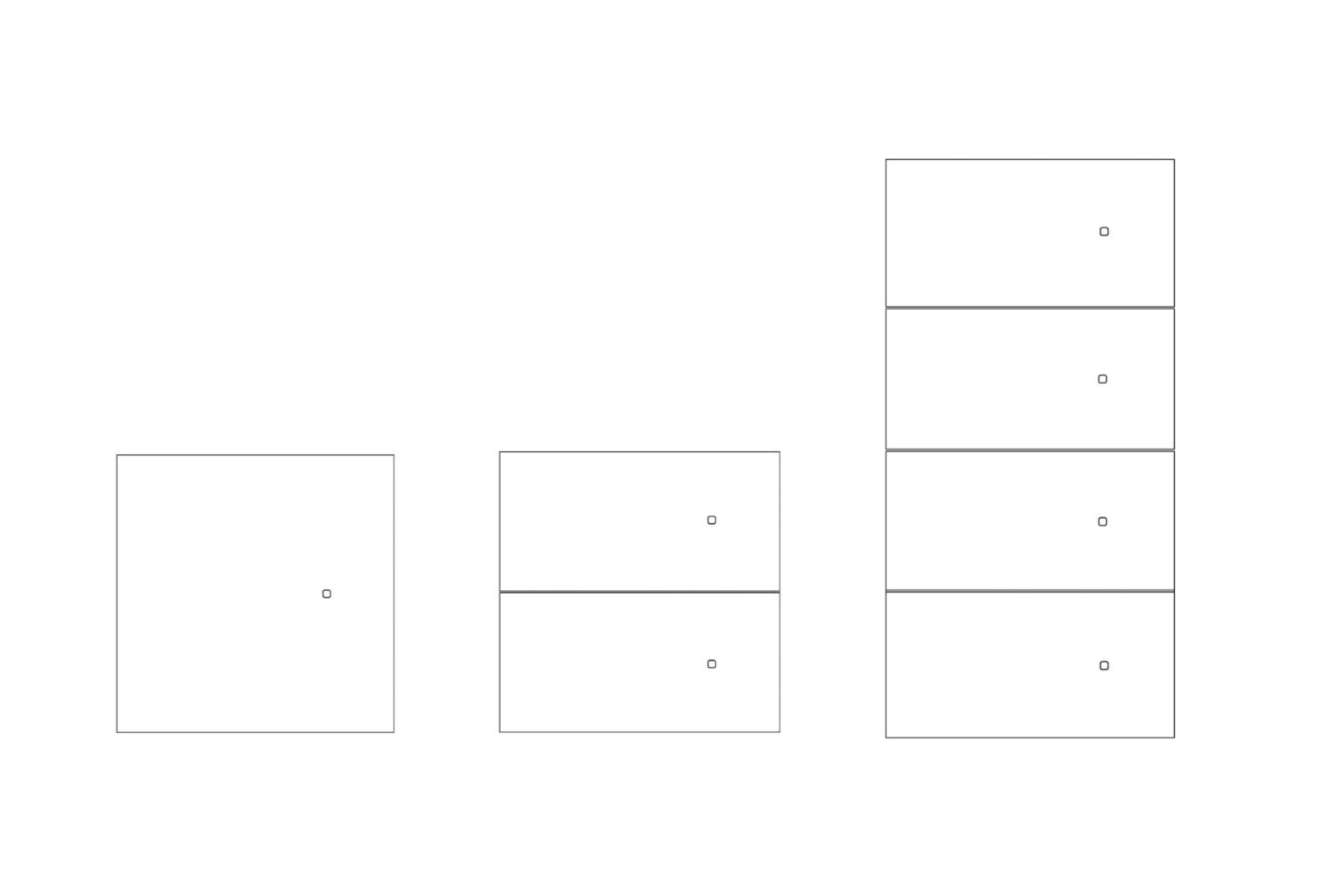

The Intensity Landscape is available with 1, 2 or 4 touch zones.
Depending on the type of front plate the Intensity has 1, 2 or 4 touch zones with individual white LED feedback per touch zone. The LED feedback is adjustable in 2 settings: the first option is 70% brightness when untouched, when touched the white LED will light up to 100% brightness. The second option is no LED brightness is shown, but when touched the white LED will light up to 100%.
The processing of the generated touch signals depends on the connected third party input module. Multi touch output is supported without separate channel.
INSTALLATION
The Intensity Landscape can be installed on a regular single British or European square or round wallbox. The switch is surface mount, but can be made 100% recessed with the Trimless Wallbox delivered by Xillo®.

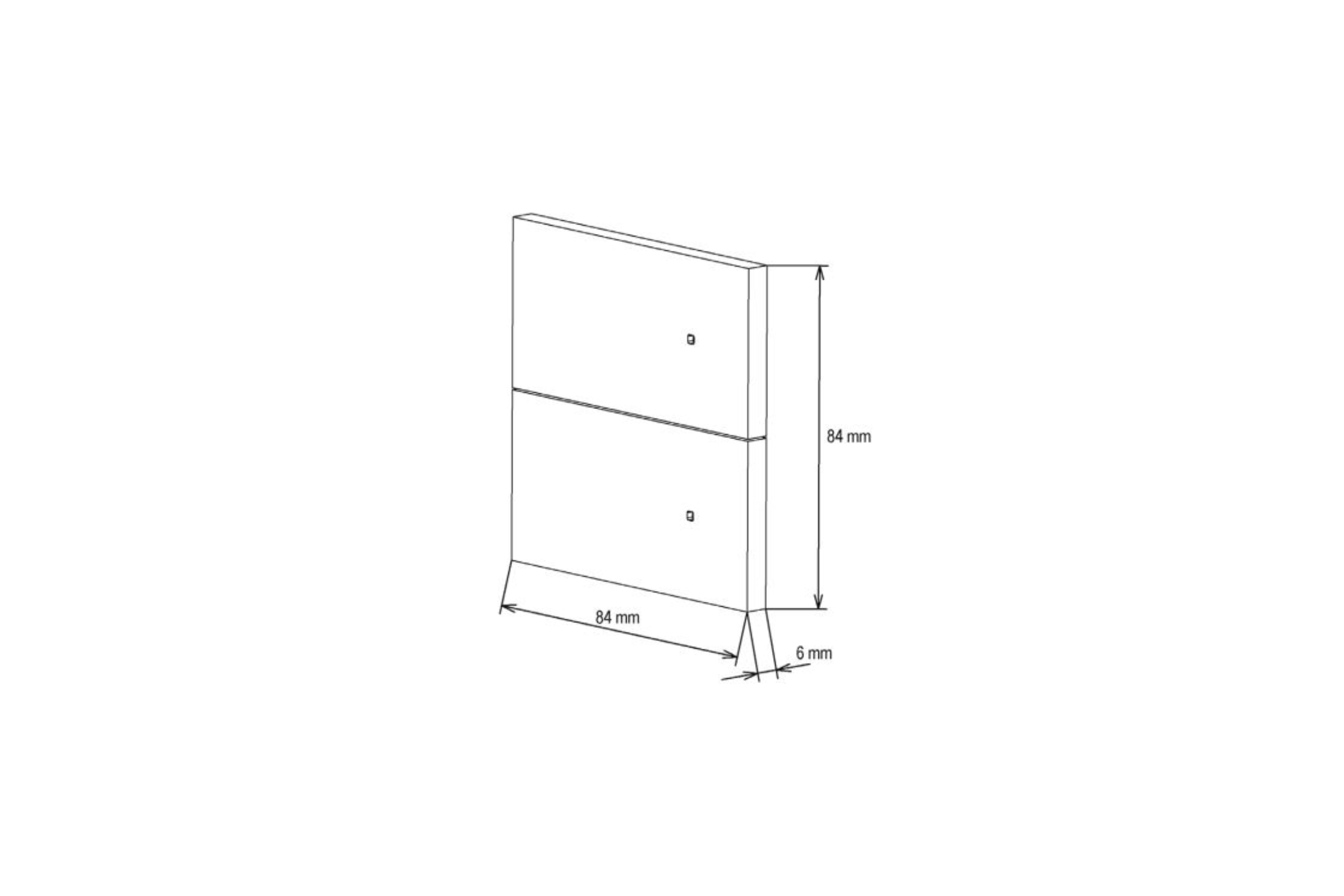

DIMENSIONS 1F, 2F
Metal: 84 x 84 x 6 mm
DIMENSIONS 4F
Metal: 84 x 165 x 6 mm
SUPPORTED SYSTEMS
KNX integration
External system integration
Existing system integration (2023-2024)
FINISHES
All Metal finishes
CUSTOMIZATION
Engraving
Lasering
Printing
